Hughes H40K45G-A-1H (Formerly PN: 30453) Mobile Self-Contained Emerg. Safety Shower w/ Eye/Face Wash,Freeze Protected,30 Gal,120V C1D2

Please email quotes@industrialsafety.com for quotes on bulk corporate and government orders or freight quotes on large items.

Manufacturer: Justrite
Manufacturer Part Number(s): H40K45G-A-1H (Formerly PN: 30453)
Unit of Measure (Sold by the): H40K45G-A-1H (Formerly PN: 30453)
Estimated Shipping Time: In Stock - Ships Within 24 Hours
SKU Justrite-30453
Click here to request a quote on bulk, corporate and government orders or freight quotes on large items.

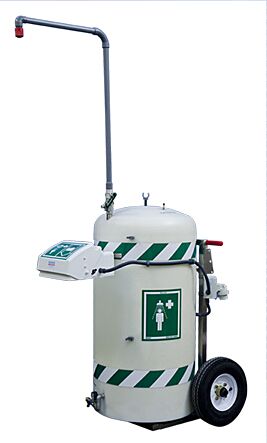

Mobile Self-Contained Emergency Safety Shower with Eye/Face Wash, EZ-Move, Heated, 30 Gallon, 120V Class 1 Division 2 Rated

This highly mobile, self-contained safety shower with eye/face wash holds 30-gallons (114-liter) of water for use in responding to potential accidents anywhere. Suitable for temporary use, this exclusive design features a corrosion-resistant, polypropylene-lined pressurized cylinder and only requires the connection of a hose from a water main to fill it ready for use. It is ideal for cold climates with a minimum ambient operating temperature of -4°F (-20°C) or above; trace tape heating with polyethylene jacket and polyurethane foam insulation improve frost protection and strength.

Easily maneuvered by one person, it incorporates a stainless steel frame and large diameter pneumatic tires—adjustable wheel spacing allows the unit to go through standard door openings. Built-in A-frame with towing hitch makes it simple to move longer distances or over uneven surfaces by using any small vehicle fitted with a standard tow ball. Disconnect shower arm for compact transportation.

The eye/face wash with high, ANSI-compliant flow rate features an integral lid connected to the water valve for automatic operation—activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on the side of the bowl adjusts to suit the severity of the accident. Suitable for Class 1 Division 2 hazardous areas, as well as non-hazardous areas.


Model No. H40K45G-A-1H (Formerly PN: 30453)
Gallon Capacity 30
Liter Capacity 114
Net Weight, lbs 227.1
Net Weight, kg 103
Filled Weight, lbs 477
Filled Weight, kg 216
Dimensions, Exterior 92.2" H x 33" W x 56.8" D
2341mm H x 839mm W x 839mm D
Water Inlet Size NPT 1/2 in Coupling
Minimum Operating Pressure 1.2 bar g, 17 PSI
Water Flow Shower/Body Liters/min 76
Water Flow Shower/Body US Gal/min 20
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Operating Valve Material Shower Valve: 316L Stainless, Eye Wash Valve: Chrome plated brass
Eye/Face Wash Bowl Material Acrylic-Capped ABS Plastic
Mounting Type Portable
Pipework Material Stainless Steel
Color/Finish White with Green Labels
Activation Method Shower: Hand lever, Eye/Face: Pull lid forward
Eye/Face Wash Bowl Interior Dimensions 9.5" W x 8" D
241mm W x 203mm D
Minimum Ambient Temperature, °F -4
Minimum Ambient Temperature, °C -20
Maximum Ambient Temperature, °F 104
Maximum Ambient Temperature, °C 40
Electrical Equipment Classification Class 1 Division 2, Gas Groups C & D, Temperature Code T3
Electrical Supply 120 VAC, Single Phase, 60/50 Hz
Heating Type Trace Tape
Heating Load, Watts 120
Operation Duration, min 1.5
Brand ManufacturerHughes Safety Showers
MPNH40K45G-A-1H (Formerly PN: 30453)
LeadtimeIn Stock - Ships Within 24 Hours
UOMH40K45G-A-1H (Formerly PN: 30453)
ManufacturerJustrite
Prop 65No
